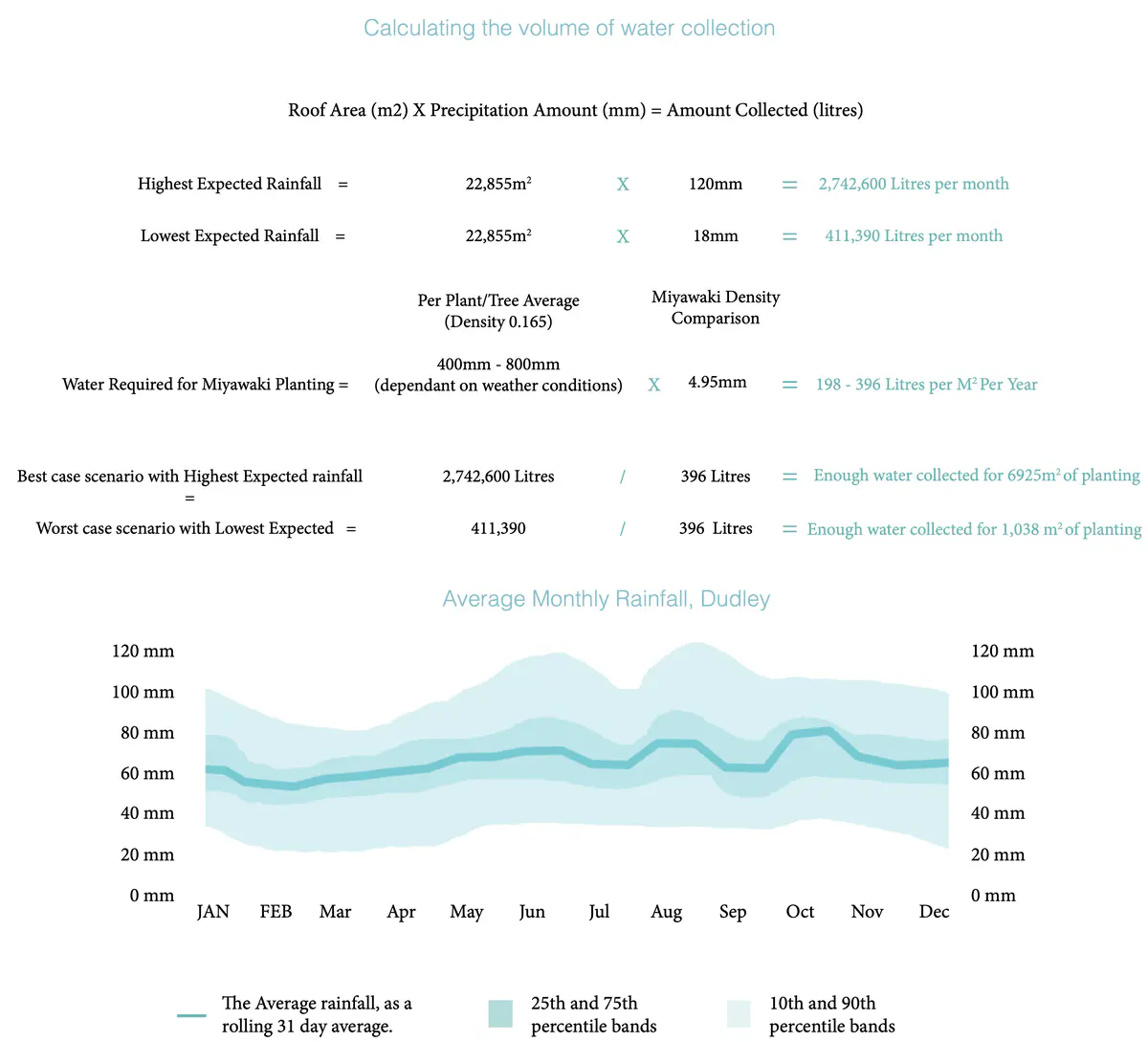

Water Collection With this information I can begin to map out 1038m2 of miyawaki forests. It is crucial that the forests do not use more water than stored as then the project isn’t zero carbon as it would require fresh water. It is important that the water collected is sufficient for this project to work. This data also provides the information to how much storage is required on the site. - Ryan Cooksey Water 1.png
Water Collection With this information I can begin to map out 1038m2 of miyawaki forests. It is crucial that the forests do not use more water than stored as then the project isn’t zero carbon as it would require fresh water. It is important that the water collected is sufficient for this project to work. This data also provides the information to how much storage is required on the site.
Added to Archive Thursday 3 March 2022
Type Map Diagram Text Count
Themes Water High Nature Growing Plantlife Sustainable Regenerative Potential Opportunity Material Waste System
What was/is/if What if
